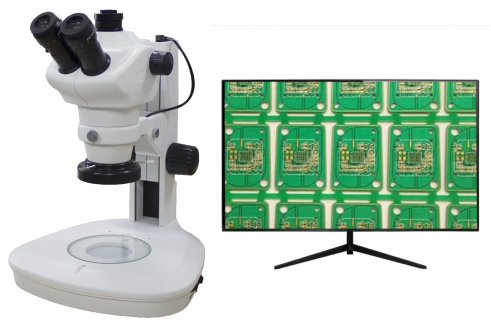

HST-JSZ8 Trinocular continuous zoom stereo microscope
Overview The classic design of the HST-JSZ8 three lens continuous zoom stereo microscope enhances the stability of the body, with excellent optical performance, complete accessories, and diverse combi
Standards:
Request A Quote Files Download
Overview
The classic design of the HST-JSZ8 three lens continuous zoom stereo Microscope enhances the stability of the body, with excellent optical performance, complete accessories, and diverse combination configurations, meeting the online detection needs of modern biology, medicine, scientific research, and the modern electronic industry.
High quality optical systems
Optical components coated with special film layers create high-quality optical systems.
Larger magnification range
Using a continuous zoom objective of 0.8X~5X (6.25:1), with a standard magnification of 8X~50X; Optional eyepiece and auxiliary objective can achieve 4-100X magnification.
Integrated lighting
The classic design of the HST-JSZ8 three lens continuous zoom stereo Microscope enhances the stability of the body, with excellent optical performance, complete accessories, and diverse combination configurations, meeting the online detection needs of modern biology, medicine, scientific research, and the modern electronic industry.
High quality optical systems
Optical components coated with special film layers create high-quality optical systems.
Larger magnification range
Using a continuous zoom objective of 0.8X~5X (6.25:1), with a standard magnification of 8X~50X; Optional eyepiece and auxiliary objective can achieve 4-100X magnification.
Integrated lighting
Adopting a new type of high brightness lighting and integrated mirror frame design, the upper and lower light sources are equipped with independent adjustment switches, ensuring uniform, long-lasting, and stable image brightness at any magnification.
Main Specifications
|
Item |
Specification |
HST-JSZ8 |
|
Observation tube |
Trinocular observation tube. 45° tilt.Can be equipped with a photography and camera interface |
·
|
|
Continuous zoom objective 0.8X-5X |
||
|
Working distance 100mm |
||
|
The range of pupil distance adjustment is 54mm-76mm, and the bilateral visual acuity can be adjusted to ± 5 diopters |
||
|
Eyepiece |
High eye point and large field of view eyepiece WF10X/22mm |
· |
|
Base |
BL1 (with built-in focusing frame) |
· |
|
Auxiliary objective |
0.5X/165mm |
O
|
|
2X/30mm. |
O
|
|
|
External light source |
LED oblique light source |
· |
|
Transmission light source |
LED |
· |
|
Camera device |
Digital camera device (5 million pixel FEC2500) |
· |
|
Digital camera device (5 million pixel FEC2500) |
||
|
0.5X adapter lens interface |
||
|
Micrometer |
High-precision micrometer (grid value 0.01mm) |
· |
