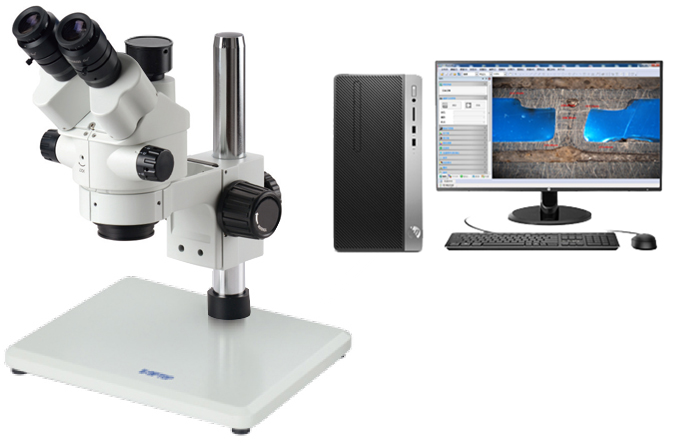

HST-JSZ8W Computerized Continuous Zoom Stereo Microscope
OverviewThe HST-JSZ8W computer-type stereo microscope is a trinocular continuous zoom stereo microscope. The classic design of the machine makes the body more stable, excellent optical performance, co
Standards:
Request A Quote Files Download
Overview
The HST-JSZ8W computer-type stereo Microscope is a trinocular continuous zoom stereo microscope. The classic design of the machine makes the body more stable, excellent optical performance, complete accessories, and diverse combination configurations to meet the needs of modern biology. , medicine, scientific research, online detection of modern electronics industry.
High quality optical system
Optical components coated with special coatings create a high-quality optical system.
Greater range of magnification
Continuous zoom objective lens 0.7X~4.5X (6.4:1), standard magnification 7X~45X; optional eyepiece and auxiliary objective lens can achieve 3.5-90X magnification.
Super long effective working distance
The effective standard working distance reaches 100mm, and the optional auxiliary objective lens will expand the working distance to 26mm~287mm, creating enough space for use.
The HST-JSZ8W computer-type stereo Microscope is a trinocular continuous zoom stereo microscope. The classic design of the machine makes the body more stable, excellent optical performance, complete accessories, and diverse combination configurations to meet the needs of modern biology. , medicine, scientific research, online detection of modern electronics industry.
High quality optical system
Optical components coated with special coatings create a high-quality optical system.
Greater range of magnification
Continuous zoom objective lens 0.7X~4.5X (6.4:1), standard magnification 7X~45X; optional eyepiece and auxiliary objective lens can achieve 3.5-90X magnification.
Super long effective working distance
The effective standard working distance reaches 100mm, and the optional auxiliary objective lens will expand the working distance to 26mm~287mm, creating enough space for use.
Main Specifications
|
Item |
Specification |
HST-JSZ8W |
|
Observation tube |
Trinocular observation tube. 45° tilt |
· |
|
Eyepiece |
High eye point wide field eyepiece WF10X/20mm |
· |
|
Objective lens |
0.7X-4.5X/100mm, to achieve the total magnification: 7-45X |
· |
|
Auxiliary objective lens |
0.5X/165mm : to achieve a total magnification of 3.5-45X |
O |
|
2X/30mm. : Realize the total magnification 7-90X |
O |
|
|
Viewable range |
Under 0.7X objective lens: field of view 28.6mm |
· |
|
Standard Focusing Frame |
A1 focusing mirror frame, steel ball guide rack rack focusing mechanism, adjustable focusing handwheel, lifting range: 50mm, bracket stroke: 48.5mm, mirror body aperture: 76mm; center distance: 155mm. |
· |
|
Base |
B5 column-type large flat base, column height 260mm, column diameter φ32mm, (matched with all focusing lens frames). Base size: (L) 230*(W) 180mm. |
· |
|
External light source |
56 LED ring lights with adjustable brightness |
· |
|
Camera device |
FEC2 5 million Sony chip camera device |
· |
|
FCL-RS image measurement software |
||
|
0.5X adapter lens interface |
||
|
Micrometer |
High-precision micrometer (grid value 0.01mm) |
O |
|
Computer |
Brand business machine |
O |
