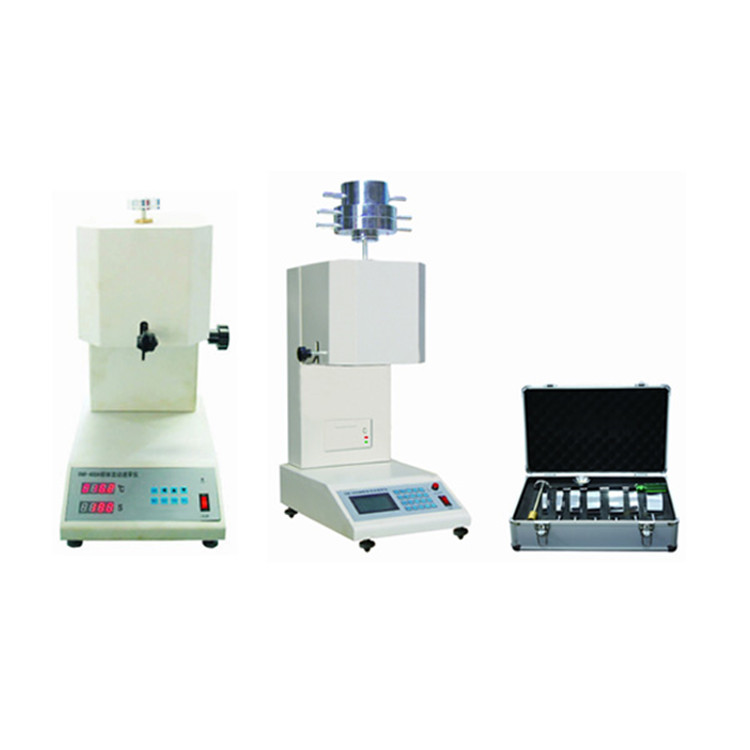

XNR-400A Melt Flow Index Tester
Application:
Applicable to the melt index testing of polyethylene, polystyrene, polypropylene, ABS resin,
polyacetal resin, polycar bonate, nylon, fluoro plastics and so on a variety of polymer plastic raw
material at a high temperature.
Specifications:
Applicable to the melt index testing of polyethylene, polystyrene, polypropylene, ABS resin,
polyacetal resin, polycar bonate, nylon, fluoro plastics and so on a variety of polymer plastic raw
material at a high temperature.
Specifications:
| Model | XNR-400A | XNR-400B |
| Measuring Range | 0.1-400.00g/10min (MFR) |
0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR) |
| Precision Of Temperature Control | Room Temperature - 450°c | |
| Precision Of Temperature | ±0.2°c | |
| Precision Of Time | 1s or 0.01s | |
| Time Setting | 1~9999s or 0.01-99.99s | |
| Load | Full Load | |
| Cutting Mode | Manual, By Time | Manual, By Time, Automatic Control |
| Screw Barrel Internal Diameter(mm) | 9.550 ± 0.025 | |
| Screw Barrel Length(mm) | 160 | |
| Cavity Die(mm) |
Tungsten Carbide, L 8.000±0.025, Internal Diameter 2.095 ±0.005 |
|
| Power(kW) | 0.45 | |
| Power Supply | AC220V, 50Hz | |
| Dimension(mm) | 400*500*60 | |
| Net Weight(kG) | 60 | 65 |
