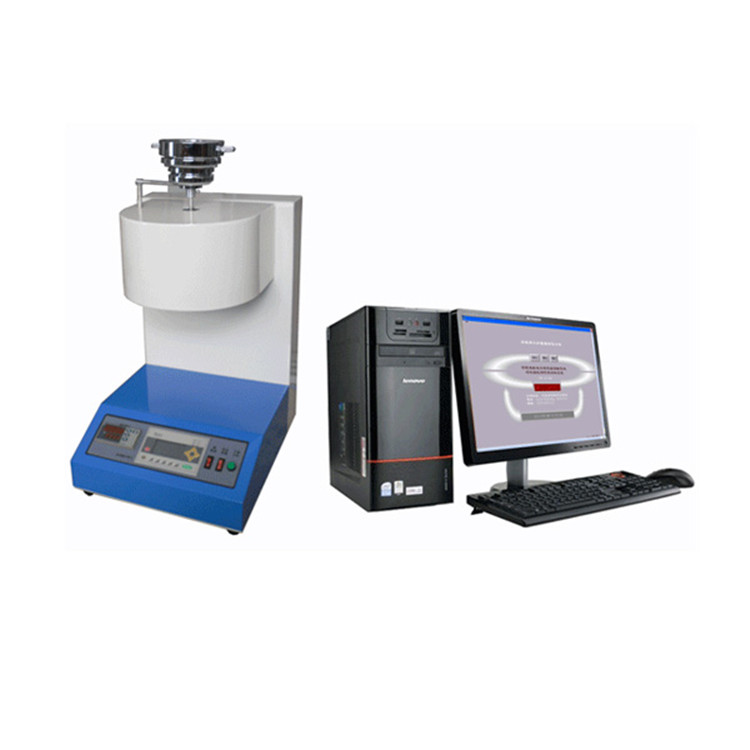

XNR-400C Plastic MFI Tester
1.Application:
melt flow index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene,POM,ABS resin.
2. Characteristics:
1. Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2. Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3. The machine uses dual control-- main engine control combined with computer display operation
4. Has the temperature calibration, test data storage and print function
3.Technical parameters:
melt flow index tester suitable for determining the melt flow rate (MFR) of thermoplastic plastic such as polyethylene,POM,ABS resin.
2. Characteristics:
1. Use Industrial PLC programmable controller,LCD operation platform, single temperature unit,LED digital display.
2. Test measures: melt flow rate (MFR) or melt volume flow rate (MVR)
3. The machine uses dual control-- main engine control combined with computer display operation
4. Has the temperature calibration, test data storage and print function
3.Technical parameters:
| Model | XNR-400C |
|
Measuring range |
0.1-800.00g/10min(MFR) 0.1-800.00 cm3/10min(MVR) |
| Precision of temperature control | room temperature - 450°c |
| Precision of temperature | ±0.2°c |
| Precision of time | 0.1s |
| Displacement precision | 0.01mm |
| Load | full load |
| Cutting mode | manual, by time, automatic |
| Charging barrel internal diameter | 9.550mm ± 0.025mm |
| Charging barrel length | 160mm |
| Mouth die |
Tungsten carbide, L: 8.000mm±0.025mm, Internal diameter: 2.095mm ±0.005mm |
| Power | 0.45 KW |
| Power supply | AC220V, 50Hz |
| Dimension | 350mm ×500mm ×650mm |
| Net Weight | 65kg |
