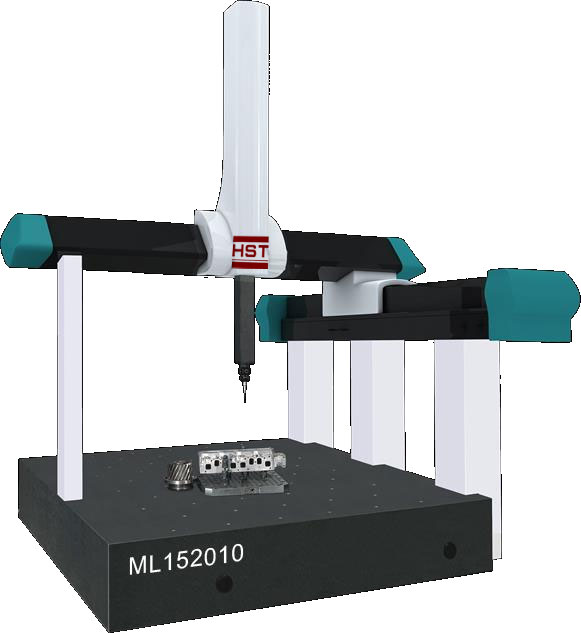

Coordinate Measuring Machine CMM HST series
Product name：Coordinate Measuring Machine CMM HST series
Product categories：Coordinate Measuring Machine
Abstract：HST series, high precison, low cost CNC CMM developed by HST Group
I、 summary
HST series coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine also can equipped with contact and non-contact probe system. Based on the new generation of controller combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop scanning.
II. Design Characteristic
- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic,have the same coefficient of thermal expansion.
- Granite worktable with integral “dovetail” guide in X axis, eliminate the pitch and yaw,also provides superior motion stability.
- Z axis air-balance with self-protection,improve motion capability.
- Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stabilit, lower noise.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- Transmission system uses high-power DC servo motor and new double level tape reducer to ensure rapid and accurate axes movement..
- RENISHAW steel scale
- Famous parts from all over the world are used in every important sub systems
- RENISHAW0.5um RENISHAW scale and readhead,Resloution: 0.5um
- Pneumatic system made
- Synchronous belt drive system
- Pricision filter
- Full screen and high soft cable towline
|
Model |
|
HST7106 |
HST 9128 |
|
resolution ratio(um) |
0.5 |
0.5 |
0.5 |
|
indicating error(um)* |
1.8＋3.3L/1000 |
2.0＋3.3L/1000 |
2.3＋3.3L/1000 |
|
measurement error(um) * |
1.8 |
2.0 |
2.3 |
|
measuring range(Dx*Dy*Dz, mm) |
500*700*500 |
700*1000*600 |
900*1200*800 |
|
carrying capacity (kg) |
1000 |
1200 |
1500 |
|
external dimensions (Lx*Ly*Lz, mm) |
1292*1789*2426 |
1492*2089*2626 |
1692*2289*3026 |
|
Weight (kg) |
About 1,080 kg |
About 1,800 kg |
approx. 2240 kg |
|
Model |
HST 10128 |
HST 10158 |
HST 121510 |
|
Resolution(um) |
0.5 |
0.5 |
0.5 |
|
Indication Error(um)* |
2.5＋3.3L/1000 |
2.8＋3.3L/1000 |
3.5＋3.3L/1000 |
|
Measurement Error(um) * |
2.5 |
2.8 |
3.5 |
|
Measuring Range(Dx*Dy*Dz, mm) |
1000*1200*800 |
1000*1500*800 |
1200*1500*1000 |
|
Load Capacity(kg) |
1600 |
1700 |
1800 |
|
Dimension(Lx*Ly*Lz, mm) |
1790*2430*3130 |
1790*2730*3130 |
1990*2730*3530 |
|
Weight(kg) |
approx. 3000 kg |
approx. 3410 kg |
approx. 4150 kg |
|
Model |
HST 15Y10 |
|
Resolution(um) |
0.5 |
|
Indication Error(um)* |
4.0＋3.3L/1000 |
|
Measurement Error(um) * |
4.0 |
|
Measuring Range(Dx*Dy*Dz, mm) |
1500*Y≥2000*1000 |
|
Load Capacity(kg) |
≥1900 |
|
Dimension(Lx*Ly*Lz, mm) |
/ |
|
Weight(kg) |
≥4500 kg |
* All data tested according to Standard ISO 10360-2.
L is measured length (units: mm)
Specifications subject to change without notice.
