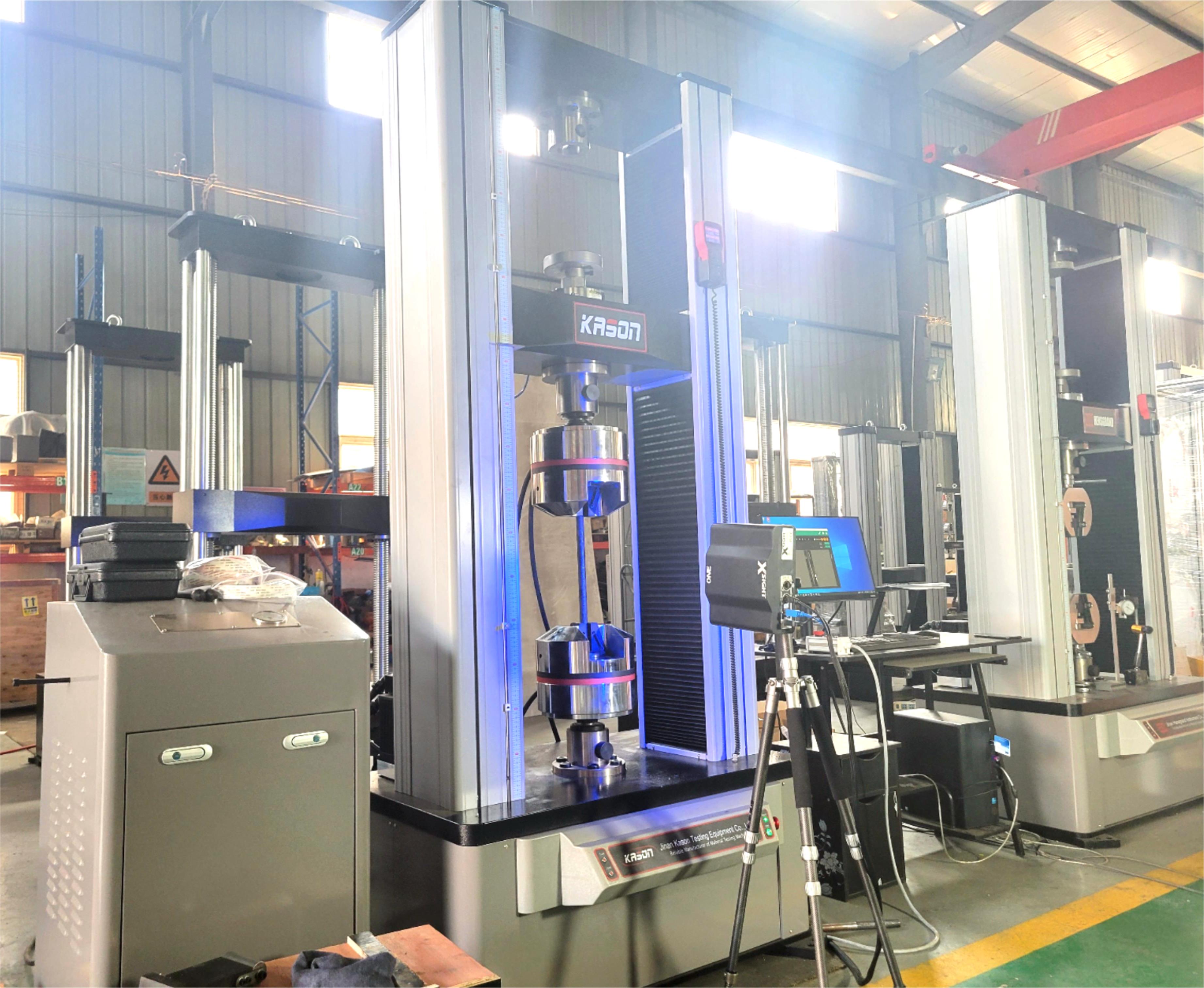

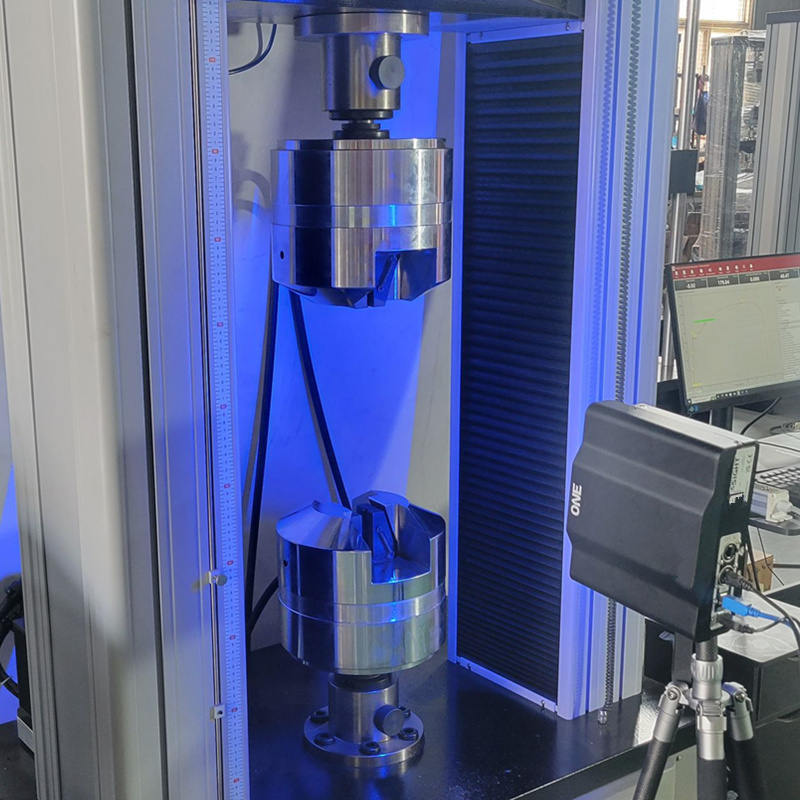

The video extensometer ONE1 is a non-contact deformation measuring device for material testing on the basis of high-resolution video technology using the surface structure or, if required, markings.
The video extensometer is used for the optical measurement of length change and is suitable for tensile tests, compression tests, bending tests and torsion tests on all materials.
ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, HGT 3844-2008 QBT 11130-1991, HGT 3849-2008,GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Model |
WDW-50E-V |
WDW-100E-V |
WDW-200E-V |
WDW-300E-V |
Max. Load(kN) |
50 |
100 |
200 |
300 |
Load accuracy |
0.5 Class |
|||
Load range |
2%~100%F·S |
|||
Load resolution |
1/500000 |
|||
Accuracy of displacement |
Within±0.5%of indicating load |
|||
Test speed(mm/min) |
0.01-1000 |
0.01-500 |
0.01-500 |
0.01-500 |
Speed accuracy |
within ±0.5% of set speed |
|||
Crosshead Travel(mm) |
700 |
700 |
700 |
700 |
Compression space(mm) |
1100 (can be customized) |
|||
Test width(mm) |
550 |
600 |
600 |
600 |
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
