Introduction

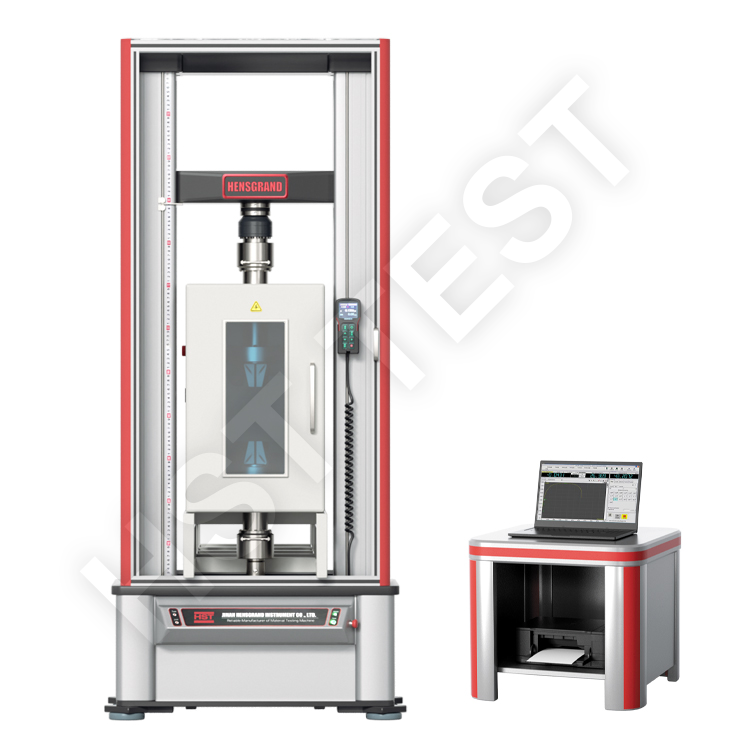

The testing system was specially developed to test high-strength composites up to 300 kN at ambient temperature or in a temperature range of -60 °C to +350 °C.

A composite material is a material consisting of two or more combined materials that exhibits other material properties than the individual components. Depending on the fiber structure of the composites, different methods of tensile, compression, flexure and shear tests are used. This allows testers to determine the mechanical properties of a material for any type of load application and according to standard.

A modular connection system provides the ability to use the full range of HST GROUP  accessories to perform a wide variety of tests. Test fixtures, tools and sensors are available to fulfill the full range of accessory requirements, enabling at least 21 different types of tests and covering more than 115 standards. In addition to the usual tensile tests, these include FHT, OHT, end-loading compression tests, FHC, OHC, CAI, overlapping shear, Iosipescu shear, V-notch shear, in-plane shear tests (IPS), SBS and ILSS, 3- and 4-point flexure tests and fracture mechanics investigations.


Standards

ASTM D3379 Single Filament Tensile Test - Determines Tensile Modulus and Tensile Strength

Matrix Tests ASTM D638 Tensile Tests - Determines Tensile Modulus, Tensile Strength and Yield Strength ASTM D695 Compressive Tests - Determines Compressive Modulus, Compressive Strength and Yield Strength ASTM D5379 Shear Tests - Determines Shear Modulus and Shear Strength

Laminate Tests ASTM D638, D3039 Tensile Tests - Determines Elastic Modulus, Ultimate Tensile Strength and Poisson’s Ratio ASTM D3410 (IITRI), D695, D6641 Compressive Tests - Determines Compressive Modulus and Compressive Strength ASTM D5379, D4255, D7078, D3518, D2344 Shear Tests - Determines Shear Modulus and Maximum Shear Stress ASTM D7264 Flex Tests - Determines Flexural Modulus and Maximum Stress

Sandwich/Core Tests ASTM C393, C273 Core Shear and Face Tension and Compression Tests - Determines Core Shear Strength, Core Shear Modulus, Core Yield Shear Strength and Face Tensile/Compressive Strength ASTM C297 Core and Sandwich Tensile Tests - Determines Tensile Moduluss and Strength of Sandwich or Core. ASTM C365 Sandwich Core Compression Test - Determines Modulus and Strength in Compression that govern wrinkling.

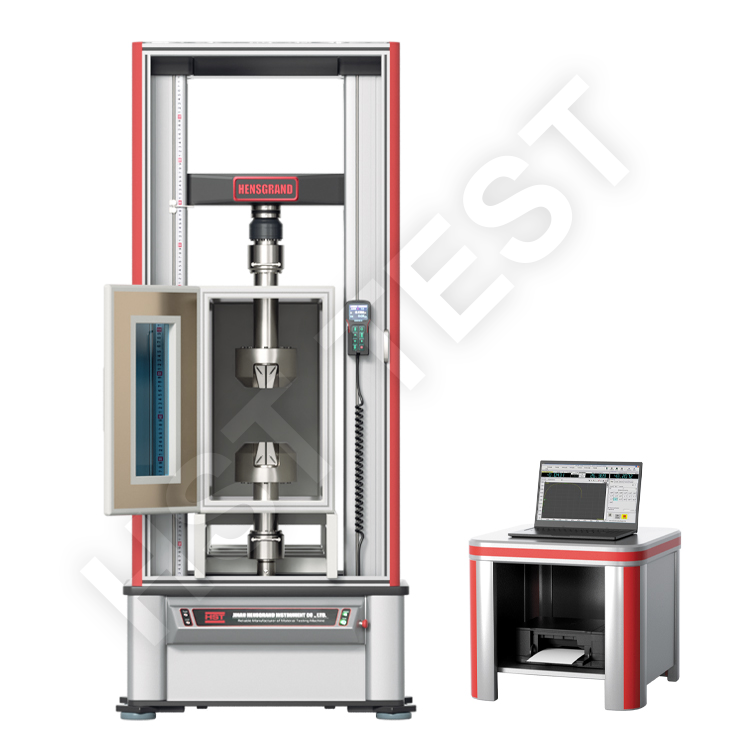

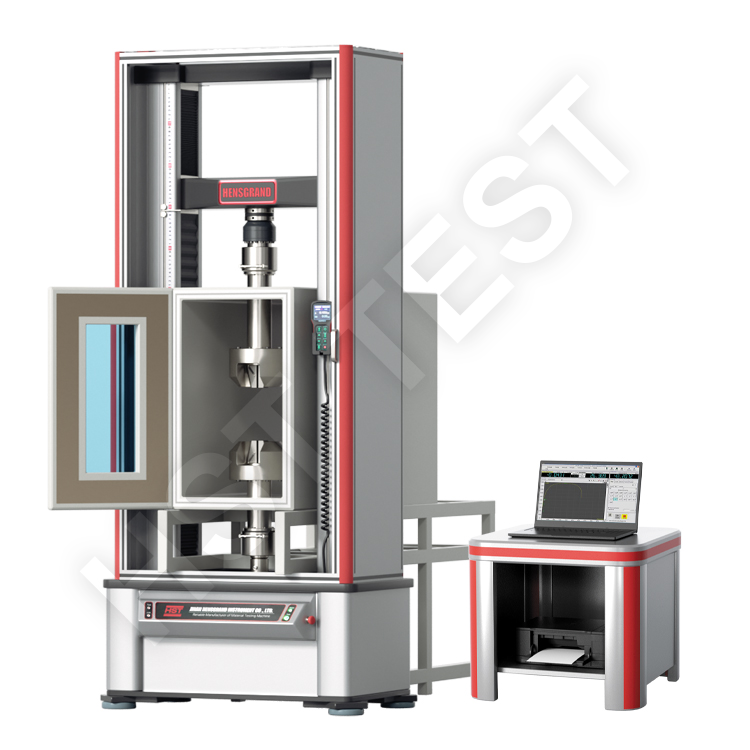

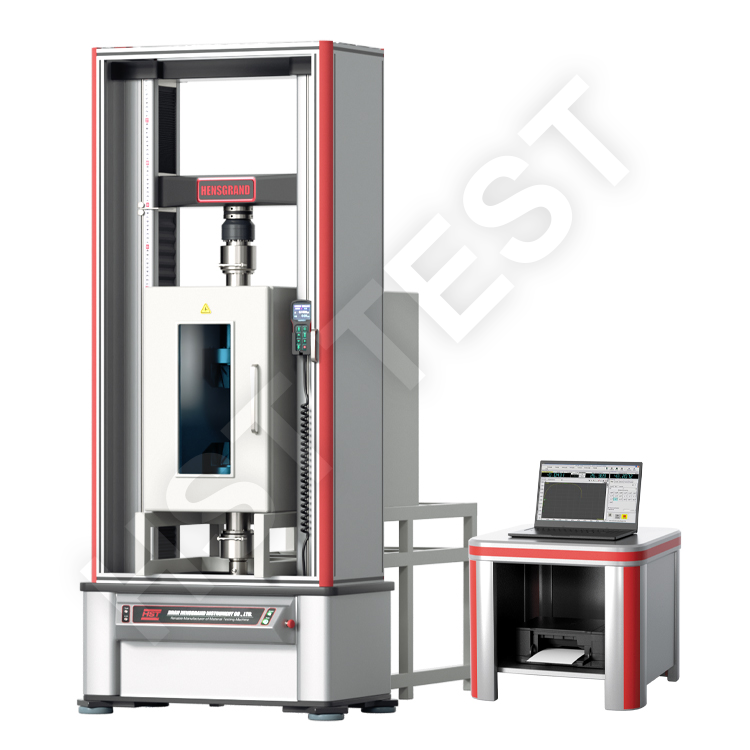

Modular testing system for tests in a temperature range of -60 °C to +350 °C

Compression Test to AITM 1.008, ISO 14126-B2, ASTM D6641

Tensile test to AITM 1.007, ISO 527-4, ASTM D3039 Compression after impact (CAI) to ASTM D7137


Specifications:

MODEL

HSTWDW-100E HSTWDW-200E HSTWDW-300E

Load Capacity

100KN                       200KN               300KN

- Meets ASTM E-4

Testing Load Accuracy

±0.5%

Testing Load Range

0.4%-100% FS

Load Resolution

1/500,000FS

Deformation measuring range

0.2%—100%FS

Deformation accuracy

≤±0.5%

Deformation adjustment range

0.02100%FS

Displacement resolution

0.04μm

Deformation resolution

1/±500000FS of the max deformation

Deformation accuracy

Within ±0.5% of the value

Crosshead speed range (mm/min)

0.001-500mm/min

Crosshead speed accuracy

±0.5% of set speed

Constant force, constant deformation, constant displacement control range

0.5%--100%FS

Constant force, constant deformation, constant displacement control accuracy

When the set value is <10%FS, it is within ±1% of the set value;

When the set value is ≥10%FS, it is within ±0.1% of the set value

Testing space (Crosshead Travel)

1100mm

Max. Tensile Testing Space

630mm

Max. Compression Testing Space

630mm

Test width

600mm

Compression Platen

Ф100mm

Load cell

High-precision USA load cell

Motor

Taiwan DELTA Ac servo speed control system

Reducer gear

Japan BEITTO

Position limit switch

Upper and lower lights

Power Supply

AC380V±10%, 50Hz/60Hz

Overall Dimensions (L*W*H)

1108x798x2430mm

Weight

about 1800kg

Power supply

2.5KW, 3 phase AC220V±10%,50Hz/60Hz

Note:

*Extra wide and/or extra height frames are available.

*Power supply system is completely customizable.

*Tensile space, test width, and speed is completely customizable.
