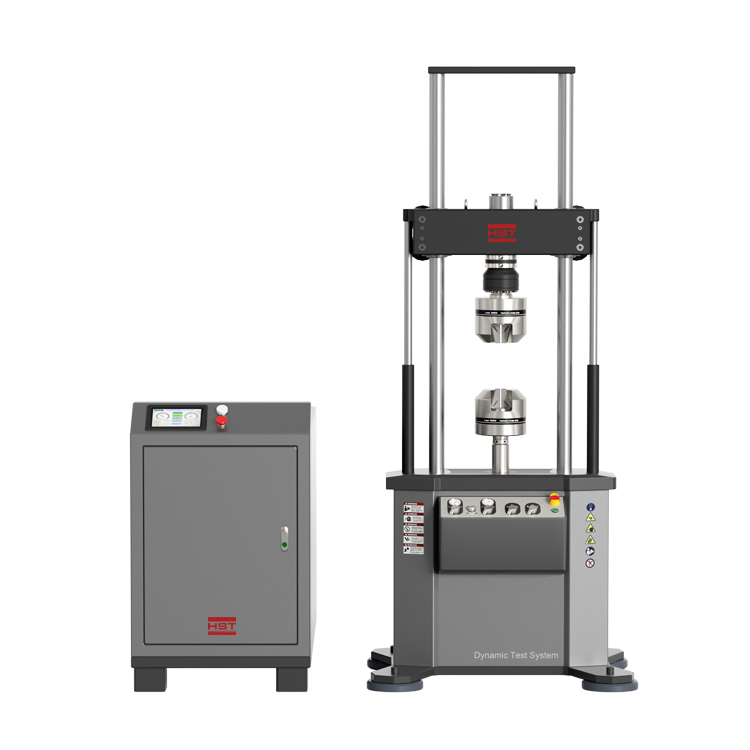

HST-F250kN 500kN electro-hydraulic servo static and dynamic universal testing machine
Application:
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
Specifications
|
Model |
HST-250F |
HST-500F |
|
Maximum test force KN (Static) |
±500 |
±1000 |
|
Maximum test force KN (Dynamic) |
±400 |
±900 |
|
Effective test space mm |
720mm*1500mm ( Not including grip ) |
|
|
Test force measurement range |
Dynamic 2%～100%FS |
|
|
Force Accuracy and Volatility |
Better than the indicated value by 1%; the amplitude fluctuation is not greater than ±1%F.S of each file |
|
|
Test force resolution |
1/500000 yards |
|
|
Test force indication accuracy |
Dynamic ±1%; Static 0.5% |
|
|
Displacement measurement range |
±75mm (total stroke 150mm) |
|
|
Displacement measurement resolution |
0.001mm |
|
|
Displacement indication accuracy |
Indication accuracy within ±0.5%FS from 1% |
|
|
Deformation |
Indication accuracy from 2%, within ±0.5% |
|
|
Frequency Range |
Standard machine 0.01-30HZ |
|
