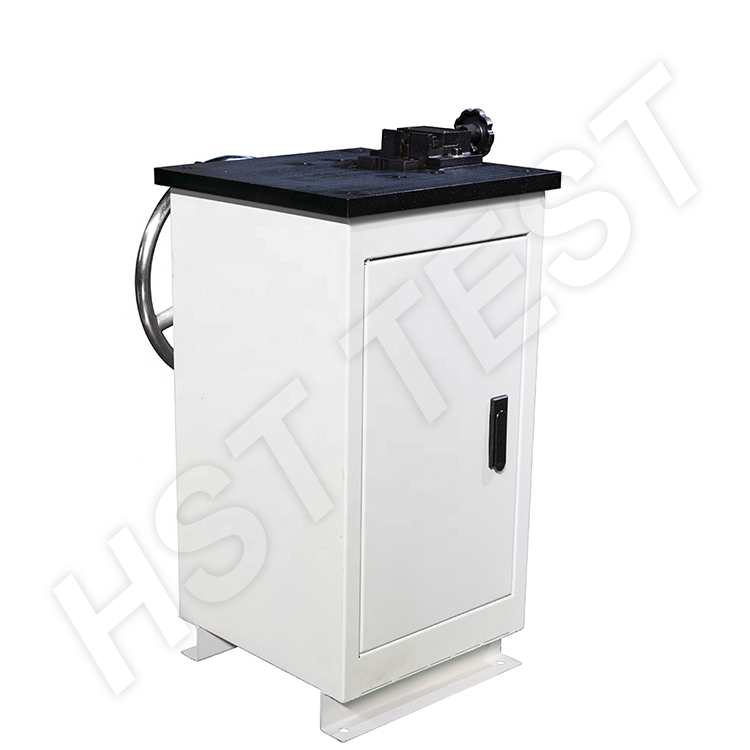

VU-1S Manual Charpy Impact Specimen Broacher
VU-1S Manual Notch Cutting Machine for Impact Specimen is used to cut notch in the impact test for petroleum chemical industry, metallurgy, boiler and pressure vessel, steel plate, steel pipe, wind power generation, hardware, metal, casting, pump, valve, solar, ordnance, fasteners, diesel engine, electric power, iron tower, railway, ship, machinery manufacturing, automotive, aerospace, physical and chemical laboratory, scientific Research
2. Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,GB229-2007
3. Main Technical Specifications:
| Shape of sample notch | V-shape(2 mm) or U-shape (2mm), only choose one |
| Sample size |
10×10×55mm (or 10×10×7.5mm , 10×10×2.5mm) |
| Cutting mode | Manual |
| Broach material | W18Cr4V |
| Max. Dimension | 350×350×600mm |
| Weight | 100kg |
