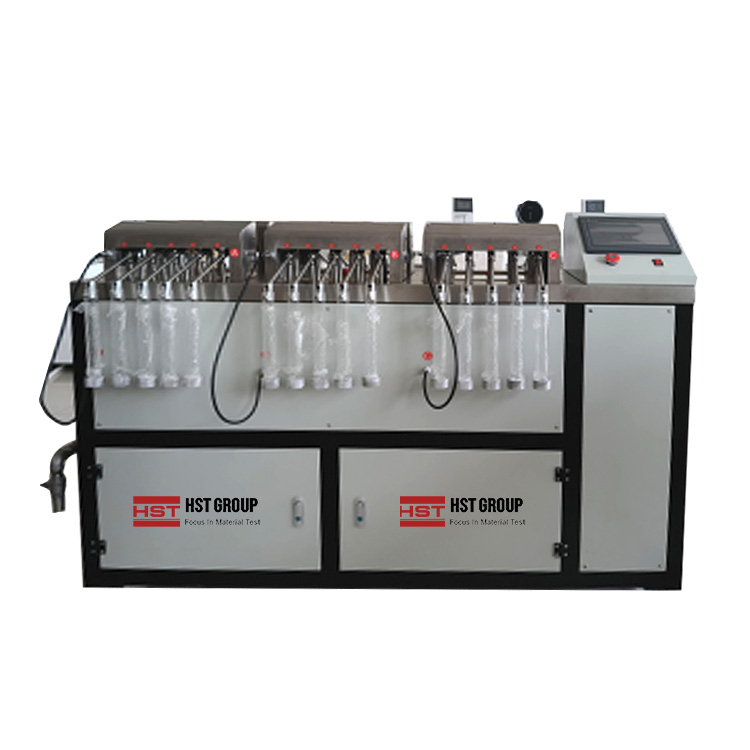

HST-NCT30 ASTM D5397 Notched Constant Tensile Load (NCTL) Tester
Application:
Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load.Standard:
GB/T 17643- D-2011,ASTM D5397-1999,CJ/T 234-C-2006,etc.
Specification:
MODEL
HST-NCT30
No. of test unit
6 or customize
Working position
5pcs per test unit
Load range
200~1370g
Tube weight
196±3g
Tube bearing weight
600g
Timing range
1s~9999h59min59s
Timing accuracy
1s
Timing deviation
1min
Volume of bath
125L
Temperature control range
RT~80℃
Display resolution
0.1℃
Temperature accuracy
±0.5℃
Clamp axis diameter
Φ6
Operation temperature
10~35℃
Heating power
3.0kw
Power supply
Single phase, (187~242) VAC, 50Hz, 4.5kw
Dimensions
1900×500×1400mm (L×W×H)
Weight
180kg
