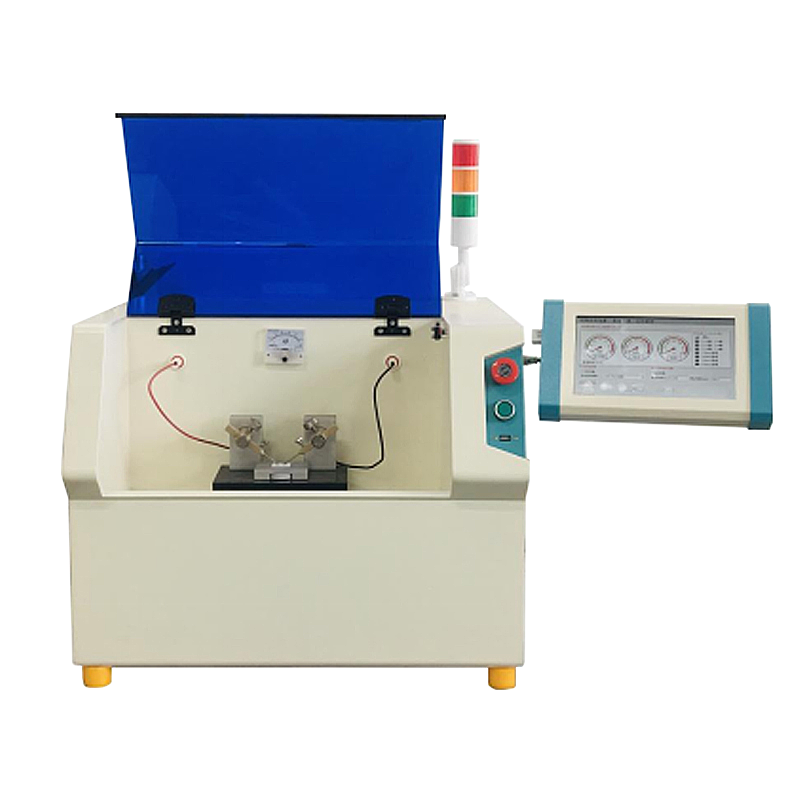

HST-DH-15K Arc resistance tester

Ⅰ、Application

HST-DH-15K Arc resistance test system is a high precision equipment specially developed for the test of electrical insulation materials，it’s suitable for electric insulation materials, plastics, film, resin, mica, ceramics, glass, insulating paint and other insulating materials arc resistance evaluation,it can also be used in product testing and research of electrical properties of new materials.

Ⅱ、Equipment parameter

1、Arc on/off time error: All program segments are superior±1ms

2、Voltage regulator capacity：1kVA

3、Rated test voltage：12.5kV Maximum test voltage：15kV

4、Test voltage accuracy：＜1.5%

5、Current measurement accuracy：＜1.5%

6、Electrode pressure on sample：（0.5±0.05）N

7、Electrode material：Tungsten bars

8、Distance between electrodes：（6.35±0.1）mm（IEC） （6.0±0.1）mm（ASTM）

9、Ambient temperature：（23±2）℃

10、Ambient humidity：（50±5）%

11、Power supply：220V±5%  50Hz  10A

12、Equipment weight：58kg Packed weight：80kg

       13、 Equipment dimension:(L*W*H)670*660*590mm                 Packed dimension：780*770*830mm
