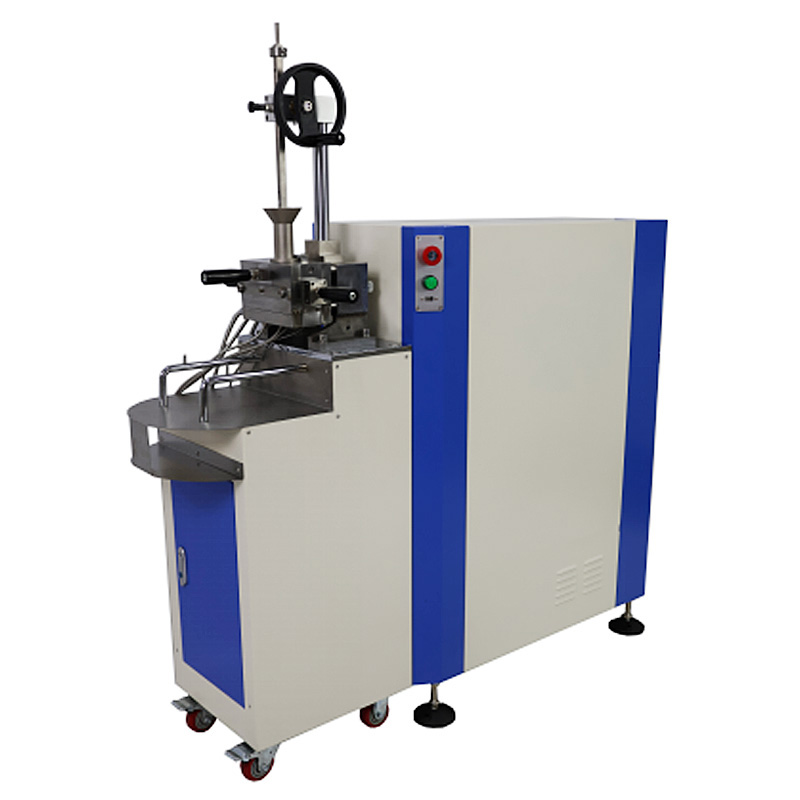

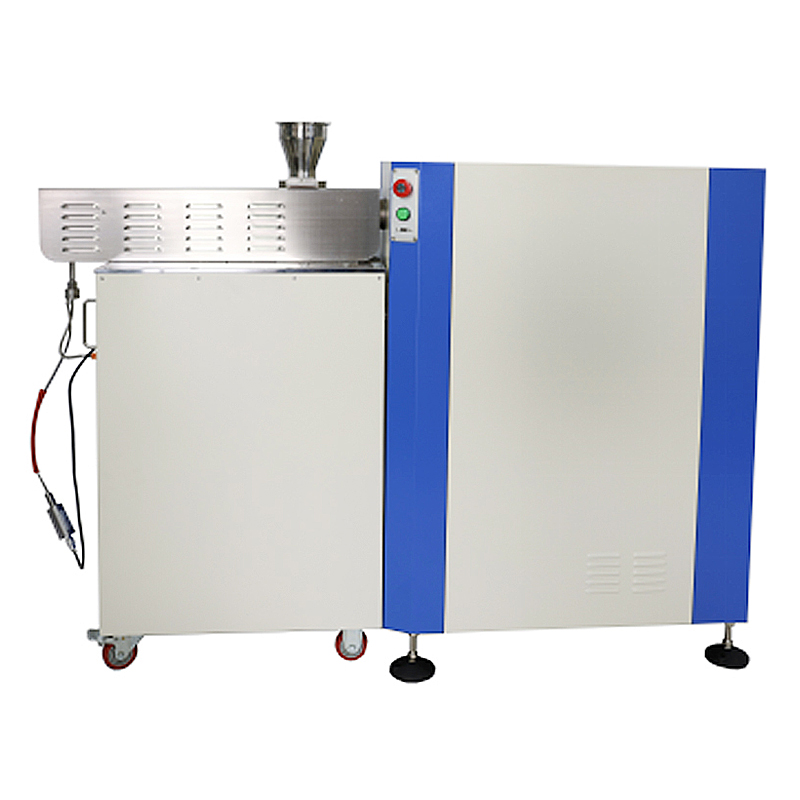

HST-JL-200A Torque Rheometer Product introduction

Ⅰ、Scope of application

Torque rheometer is an ideal equipment to study the flow and deformation, plasticization, thermal shear stability, dynamic rheological properties and plasticization behavior of polymer materials and show the results in the form of torque-time and torque-temperature，and the mixing of multi-component materials, the cross-linking curing of thermosetting resins, the vulcanization of elastomers, the dynamic stability of materials and the influence of screw rotating speed on the processing performance of the system, etc.

Ⅱ、Performance parameter

1、Motor power (Panasonic motor, controller): 3.0kW

2、Motor rotating speed：2000r/min

3、Reduction ratio (China Hubei Kefeng reducer)：15：1

4、Rotating speed range：0.1~120 rpm

5、Speed control accuracy：±0.2%F.S..

6、Torque measurement range：0 ~ 200Nm（Rated torque 300Nm）

7、Torque measurement accuracy：±0.3%F.S.

8、Melt pressure measurement range：0.1~100Mpa (It can be customized according to user requirements,

and the price negotiable.）

9、Pressure measurement accuracy：+0.3 %F.S.

10、Temperature control range： Room temperature~350℃ (five-way temperature control)

11、Temperature control accuracy：+0.5℃

12、Graphic display：Rotating speed, torque, temperature, pressure

13、Voltage：AC380V  7.5kw
