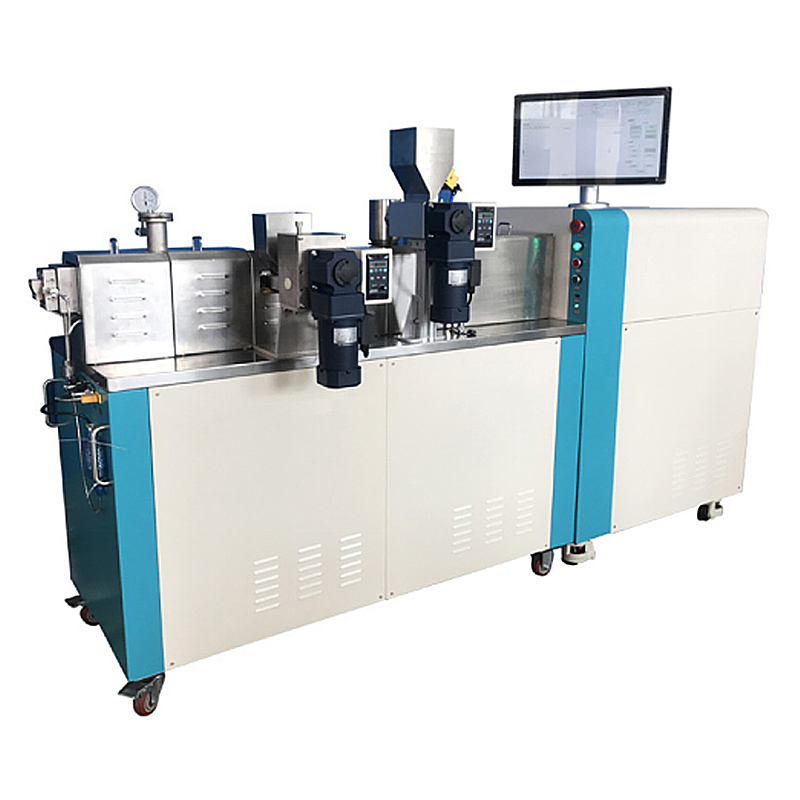

HST-JL-200B Building Block (vacuum) Parallel Twin Screw Extrusion platform + mixer Torque Rheometer
Ⅰ、Scope of application
Torque rheometer is an ideal equipment to study the flow and deformation, plasticization, thermal shear stability, dynamic rheological properties and plasticization behavior of polymer materials and show the results in the form of torque-time and torque-temperature，and the mixing of multi-component materials, the cross-linking curing of thermosetting resins, the vulcanization of elastomers, the dynamic stability of materials and the influence of screw rotating speed on the processing performance of the system, etc.
Ⅱ、Performance parameter
|
Electric motor power |
5.0kW |
|
Electric motor rotating speed |
2000r/min |
|
Reduction ratio |
10:1 |
|
Range of rotating speed |
0.1~200 rpm |
|
Speed control accuracy |
±0.1%F.S. |
|
Torque measurement range |
0 ~ 200Nm （Rated torque 300Nm） |
|
Screw diameter |
22 mm |
|
Temperature control accuracy |
±0.5%F.S |
|
Total heating power |
5500W |
|
Max rotating speed of screw |
500r/min |
|
Temperature range |
Room temperature ~350℃ |
|
Twin-screw extruder dimensions（L*W*H） |
1710*760*1370mm |
|
Twin-screw extruder weight |
230kg |
|
Voltage |
AC380V 7.5kw |
