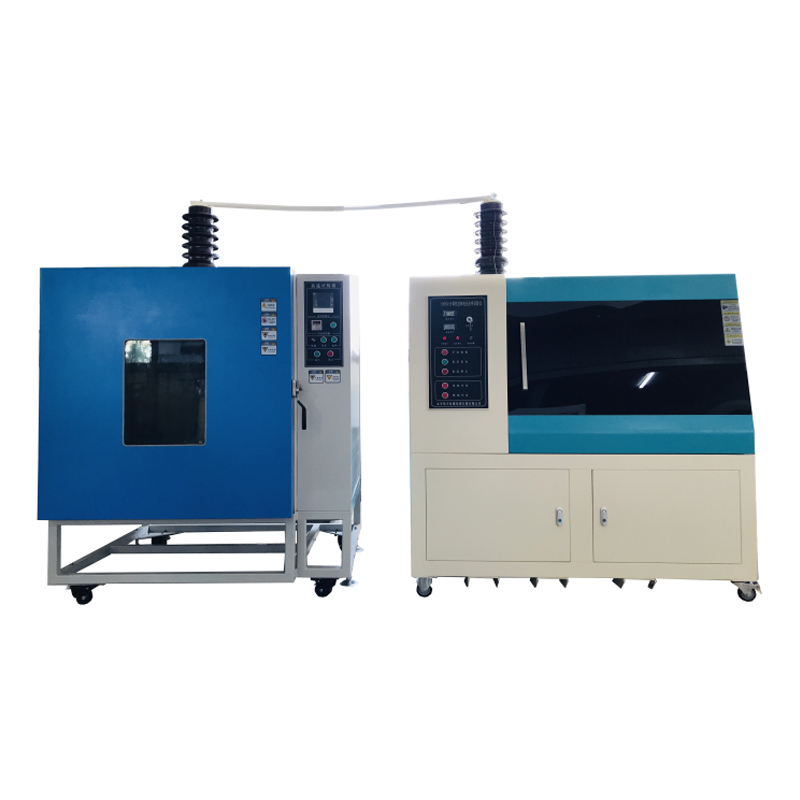

HST-JW-D-W Series computer controlled high temperature voltage breakdown testers

Ⅰ、Scope of application

It is mainly applicable to the test of breakdown strength and withstand voltage time of solid insulating materials such as wire sleeve, resin and adhesive, impregnated fiber products, mica and its products, plastics, film composite products, ceramics and glass under power frequency voltage or DC voltage; The instrument is controlled by computer, which can quickly and accurately collect and process various data in the test process, and can access, display and print.

Ⅱ、Main technical indicators

1、Output voltage：AC：0~100kV DC:0~100kV
2、Output power：10kVA
3、Measuring range：AC:1~100kV DC:1~100kV
4、Measuring error：≤ 2％
5、Boosting rate：0.5kV/s~10kV/s
6、Withstand voltage time：0～4H (No load withstand voltage）
7、Leakage current：1～30 mA Can be freely set by computer software
8、Test environment temperature：Temperature:15 ~ 30 ℃;

relative humidity: 30% ~ 65%, which can operate stably
9、Overall dimension：1600*1110*1510mm
10、Equipment weight：340 kg
11、Power supply：Single phase AC voltage of  220V ± 10% and frequency of 50Hz ± 1%
