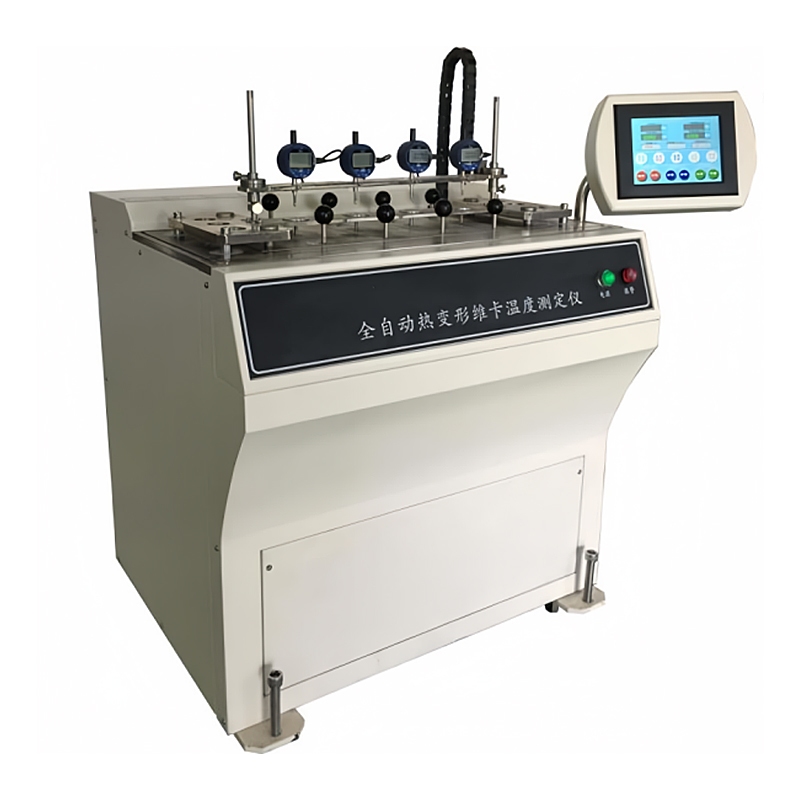

HST-KW-300B Computer controlled fully automatic thermal deformation Vicat temperature measuring instrument

Ⅰ、Scope of application

This instrument is suitable for chemical enterprises, scientific research institutes, colleges and universities, etc. It is widely used in the determination of heat deformation temperature (HDT) and Vicat temperature (VST) of thermoplastics, hard rubber and long fiber reinforced composite materials.

Ⅱ、Main technical parameters and accuracy

1、Temperature control range：Room temperature~300℃

2、Temperature measurement accuracy：±0.5℃

3、Uniform heating rate：A velocity：5 ±0.5℃/6min      B velocity：12±1.0℃/6min

4、High precision digital dial indicator accuracy：±0.003mm

5、Deformation measurement range：0~3mm

6、Deformation measurement accuracy：±0.005mm

7、Softening point (Vicat) test maximum load：GA=10N ±0.2N；GB=50N ±1N

8、Hot deformation bending normal stress:

Method A：1.80Mpa ; Method B：0.45Mpa; Method C：8.00Mpa

9、Max heating power：4000W~6000W

10、Power supply：AC  220V  50HZ

11、Span：64mm、100mm

12、Placement method：The sample can be placed horizontally or sideways.

13、Heating medium：Methyl-silicone oil（Equipped by user，viscosity within 200cst，flash point 300℃）

14、Equipment dimension:(L*W*H)1180*780*1100mm       Packed dimension:1300*900*1400mm

15、Equipment weight:170kg                Packed weight:190kg
