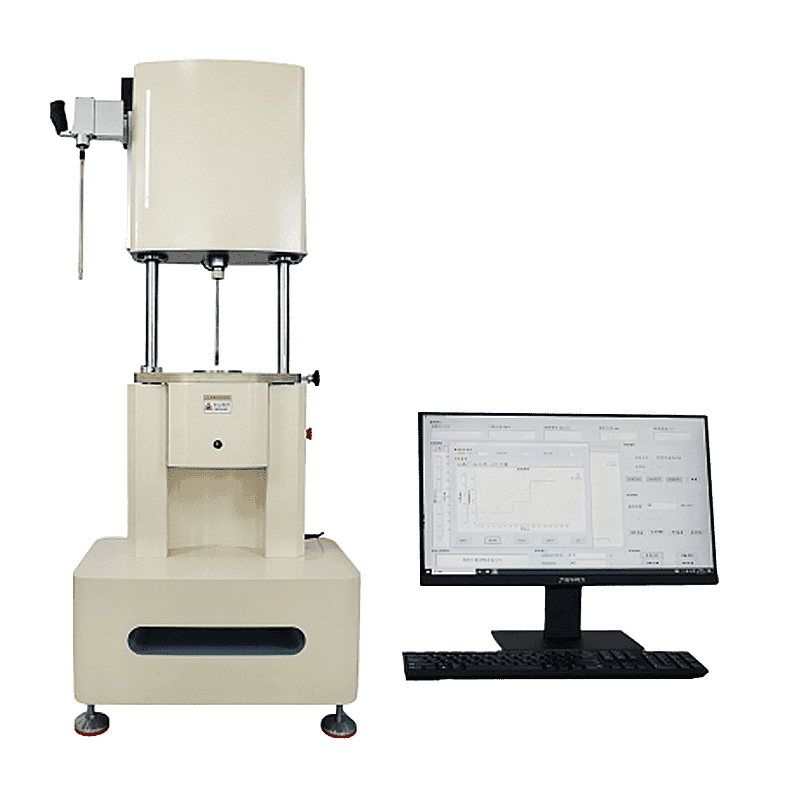

HST-LW-400D Computer Controlled Capillary Rheometer
Ⅰ、Scope of application
Used to determine the shear rate of plastics and polymer materials at a certain temperature and the flow of melt under shear stress, including the apparent viscosity of thermoplastics.
Ⅱ、Main technical parameters and accuracy
Heating rate：1-10℃/min，Continuously adjustable, and rapid heating
Temperature measurement display accuracy： 0.1℃
Pressure range：1-100MPa±0.5%（customizable）
Maximum driving force：10KN 、20KN（customizable）
Pressure measurement accuracy：±0.5%FS
Pressure resolution：0.1Mpa
Velocity range：0.01-500mm/min
Deformation measurement accuracy：±0.5%FS
Plug diameter：φ12 mm（customizable）
Plug area：113.04mm2
Weight：165Kg
Power supply：AC220V，50Hz, power<1000W
