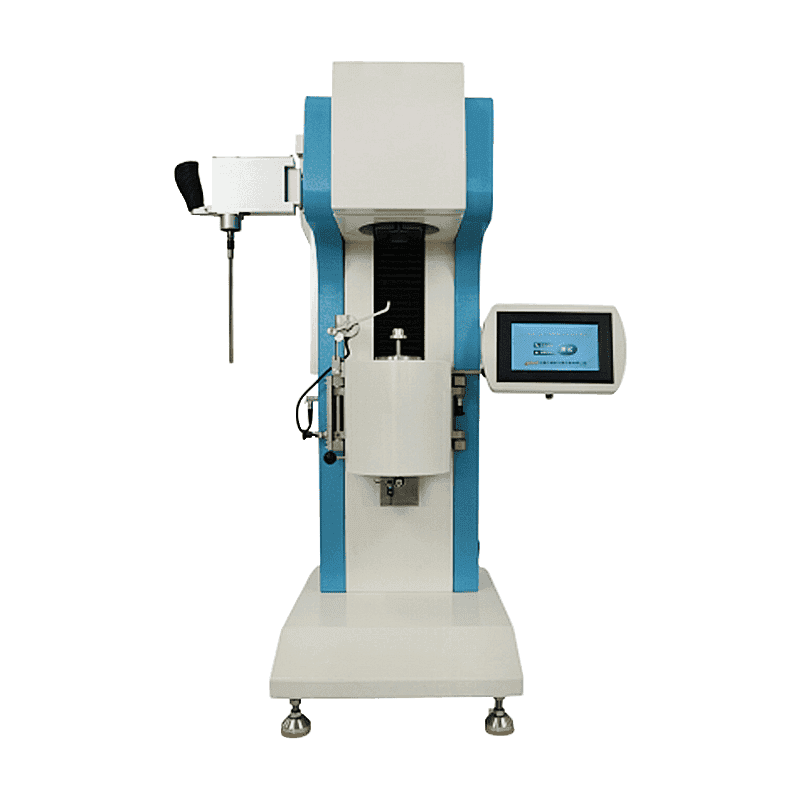

HST-RZ-400A Automatic melt flow rate tester

Ⅰ、Application

Used for the determination of melt flow rate of polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylate, polyformaldehyde, fluorine plastics, polycarbonate and other materials.

Ⅱ、Main technical parameters and accuracy

Barrel parameter：Inner hole:Φ9.550mm±0.007mm

Piston parameter：Piston headΦ9.474mm±0.007mm

Piston head length：H=6.35mm±0.1mm

Internal diameter of die：Φ2.095mm±0.005mm

Die length(Flow channel length）：8.00mm±0.025mm

Temperature control range：80℃~400℃

Temperature control accuracy：±0.2℃

Display resolution：0.1℃

Max power consumption：≤1.5Kw

Temperature recovery time：4min/6min

Control accuracy：±0.1mm

Equipment weight：167kg

Equipment dimension: 750*560*1130mm

Power supply：AC 220V   1.5Kw
