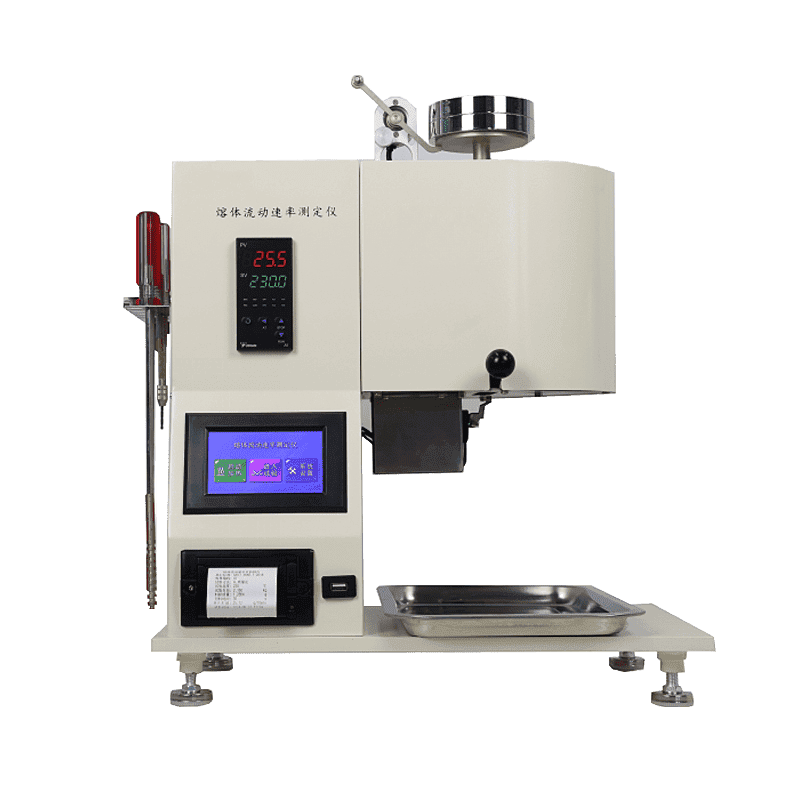

HST-RZ-400H Color crystal display melt flow index tester

HST-RZ-400H Color crystal display melt flow index tester
HST-RZ-400H Color crystal display melt flow index tester
HST-RZ-400H Color crystal display melt flow index tester


Application

Used for the determination of melt flow rate of polyethylene, polypropylene, polystyrene, ABS, polyamide, fiber resin, acrylate, polyformaldehyde, fluorine plastics, polycarbonate and other materials.

Ⅱ、Main technical parameters and accuracy

Barrel parameterInner hole:Φ9.550mm±0.007mm

Piston parameterPiston headΦ9.474mm±0.007mm

Piston head lengthH=6.35mm±0.1mm

Internal diameter of dieΦ2.095mm±0.005mm

Die length(Flow channel length):8.00mm±0.025mm

Temperature control range80℃~400℃

Temperature control accuracy±0.2℃

Display resolution0.1℃

Max power consumption0.5Kw

Temperature recovery time4min/6min

Control accuracy±0.1mm

Equipment weight36kg

Equipment dimension470*290*460mm

Power supplyAC 220V   0.5Kw
