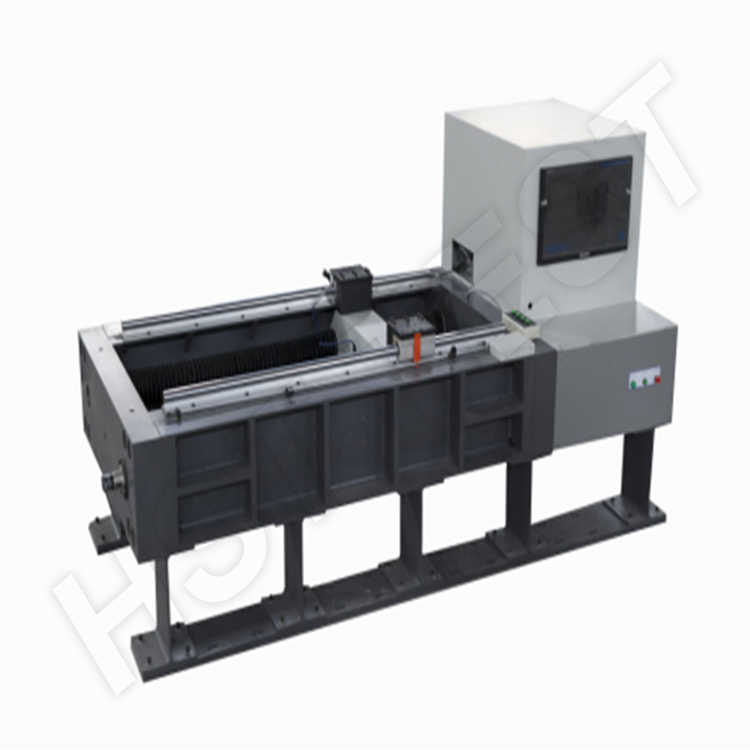

WDL Horizontal Electronic Tensile Testing Machine
This machine mainly to satisfy the long sample, full size specimen to tensile test. Mainly used for various metal components, wire rope, chain, anchor chain, lifting belt, cable and the separating plate to tensile properties test.
2.Application:
This machine consists of the host, drive system and computer measurement and control system of three parts. This machine is the automatic computer acquisition experiment data and the automatic control process. Frame use the H frame structure, test force by the ball screw, load sensor, the encoder measuring displacement, computer screen displays real-time test power and test curve and automatic processing of test data according to the preset test method, sample clamping way is bolt method.
3.Technical Parameters:
| Model | WDL-50,100,200,300KNC |
| Max. Load (kN) | 50,100,200,300KN |
| Structure | Full H Section Steel Frame |
| Control Way |
Constant Stress, Deformation, Displacement, Three Closed Loop Control And Programming Control |
| Test Accuracy Class | 1 Class |
| Test Force Measurement Range | 2%-100% FS |
| Test Force Relative Error Value | ≥±1% |
| Force Display Resolution | 1/20000 |
| Deformation Effectively Measurement Range | 2%～100% FS |
| Deformation Display Resolution | 1/20000 |
| Deformation Values Relative Error | ≥±0.5% |
| Displacement Resolution | 0.01 mm |
| Displacement Relative Error Value | ≥±0.5% |
| Effective Tensile Space | 0-4500 mm |
| Framework(Left and Right)Effective Spacing | 750 mm(Or According To Customers’Requirements) |
| Moving Beam Adjustment Speed | 0.05-500 mm/min |
| Clamping Way Of Tensile Fixtures | Bolt Method |
| Compression Fixture Configuration | Ф100 mm |
| Power Supply | 220V/50Hz/Three-phase Four-wire System |
