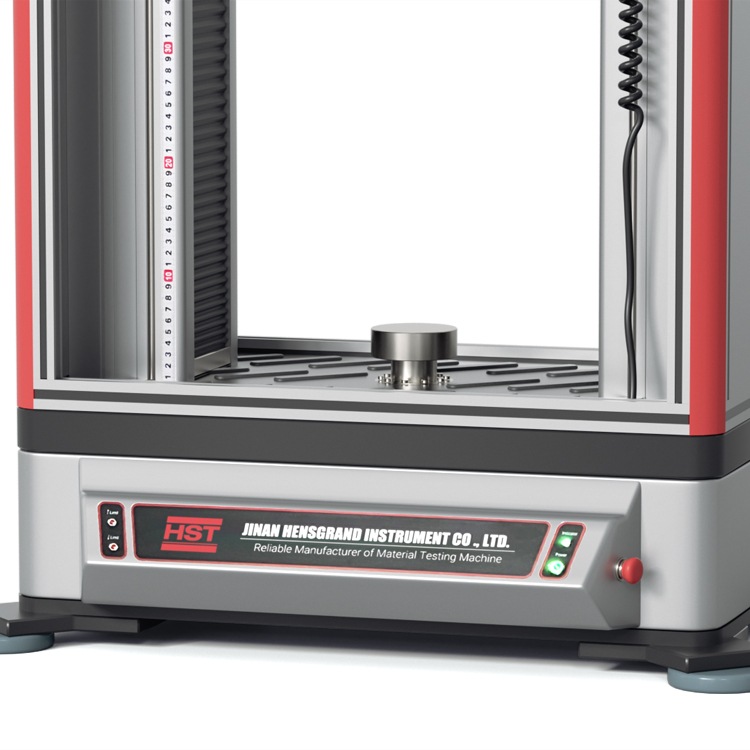

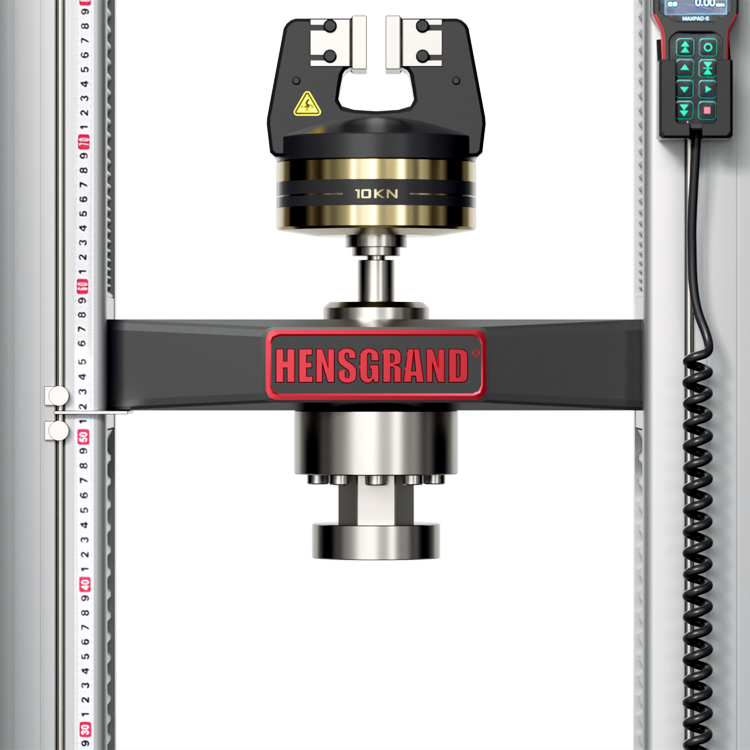

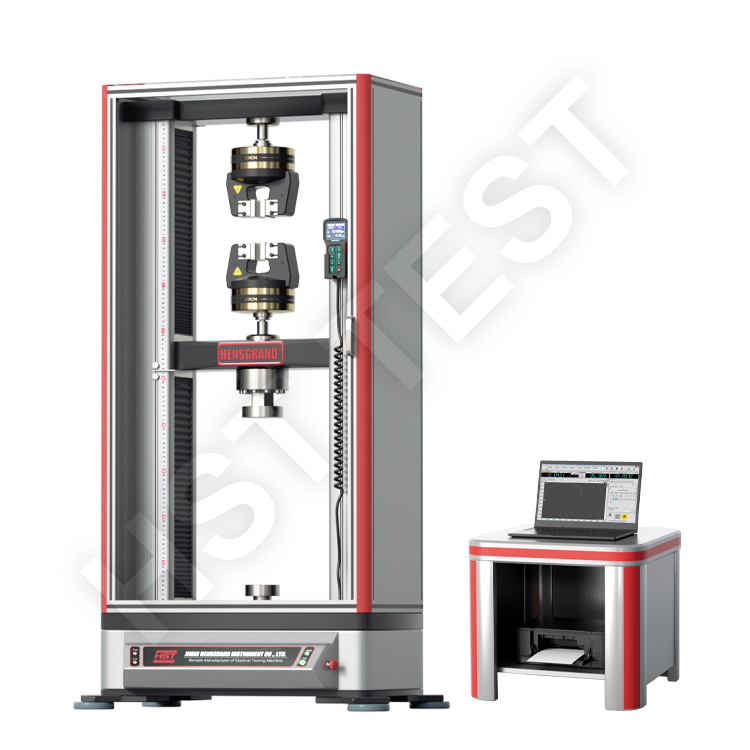

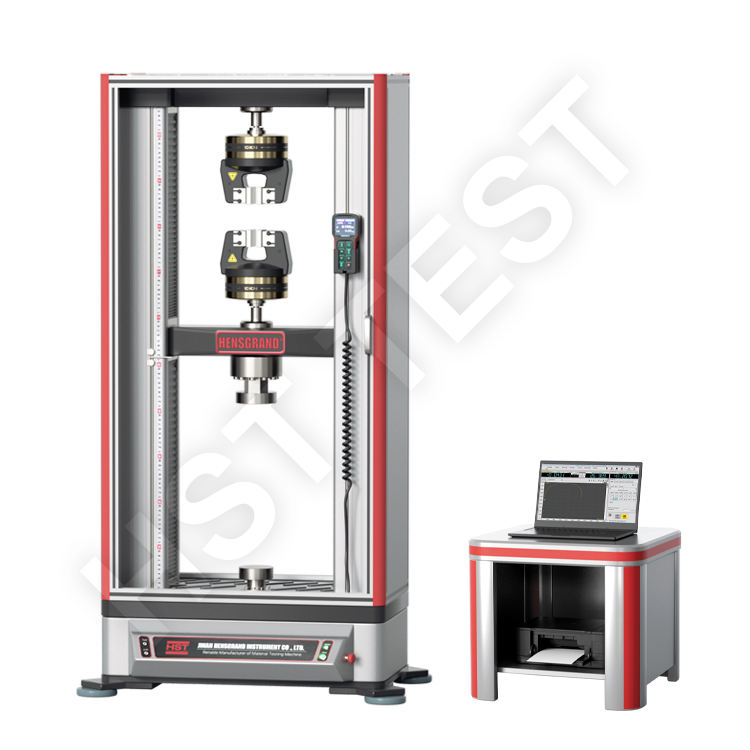

10/30/50/100KN Computer Control Geotextile Material Tearing Tensile Strength Test Machine
1. Application
This machine is suitable for tensile, compression, bending, shearing and tearing test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc.
They may add test methods or rules according to customers' requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Specifications
|
Model |
WDW-5E |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
|
Max. Load(kN) |
5 |
10 |
20 |
30 |
50 |
|
Load accuracy |
Class 0.5 |
||||
|
Load range |
0.2%～100%F·S |
||||
|
Load resolution |
1/500000 |
||||
|
Resolution of deformation |
0.04um |
||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
||||
|
Resolution of displacement |
0.01mm |
||||
|
Test speed(mm/min) |
0.05-1000 stepless arbitrary setting |
||||
|
Speed accuracy |
within ±1% / ±0.5% of set speed |
||||
|
E-Tensile space(mm) |
670 |
670 |
670 |
770 |
770 |
|
E-Compression space(mm) |
900 |
900 |
900 |
1000 |
1000 |
|
D-Test width(mm) |
450 |
450 |
450 |
550 |
550 |
|
F-Beam travel distance(mm) |
1000 |
1000 |
1000 |
1100 |
1100 |
|
Power supply |
AC220V±10%，50Hz/60Hz (can be customized) |
||||
