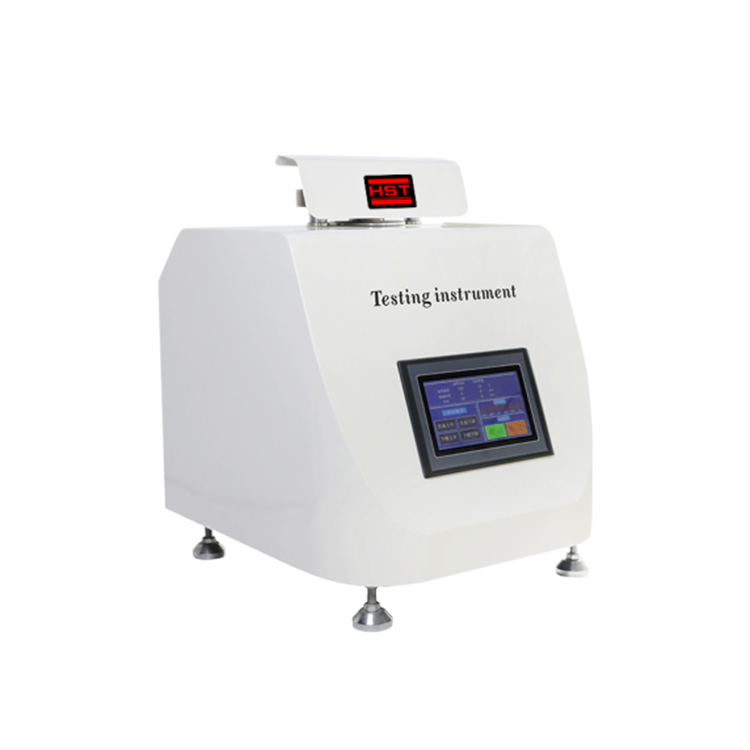

HST- ZXQ3T Pneumatic Metallographic mounting machine

Introduction:
HST- ZXQ3T Automatic metallographic specimen mounting press is a kind of pneumatic and full automatic mounting press, equipped with in-out water cooling system. It is suitable for the hot mounting process of thermo-hardening & thermoplastic materials. This machine can automatically heat, apply pressure and after sample preparation is finished, it can stop working, release pressure and then push out sample automatically. It is the ideal sample preparing equipment to be used in factories, researching institutes and college laboratories.

Main parameters:
MODEL :HST-ZXQ3T
Sample diameter :Ø30 mm
Heating temperature :0-200℃
Heating time :0~99 min 99s
Cooling time: 0~99 min 99s
Cooling method :Water
Machine power :1000W
Air Pressure: 0.4-0.7Mpa
Power supply :Single phase AC 220V, 50Hz
Dimension 4:35× 520× 605 (mm)
Weight :77kg
