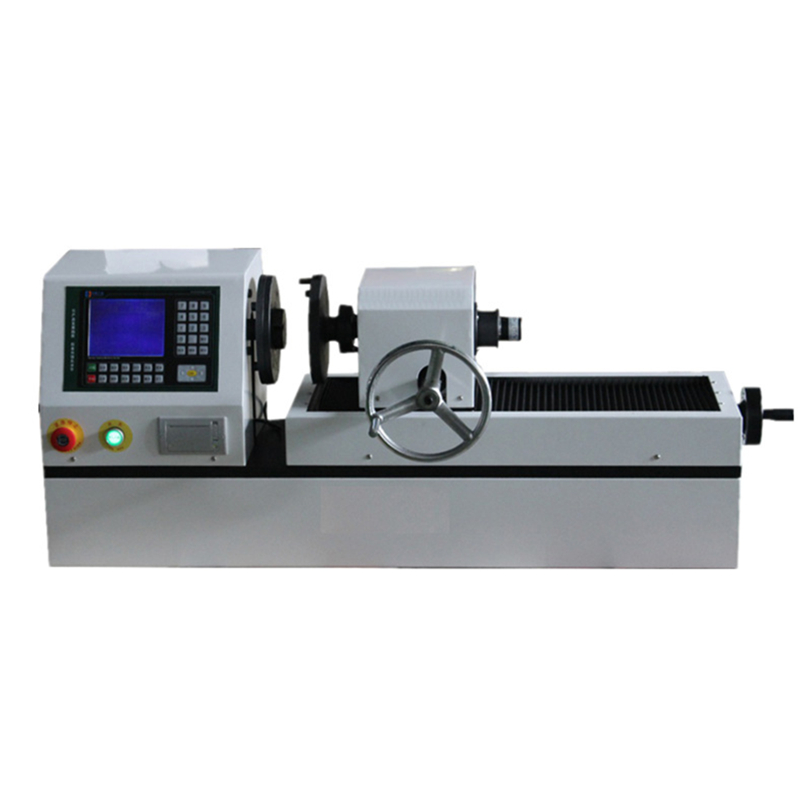

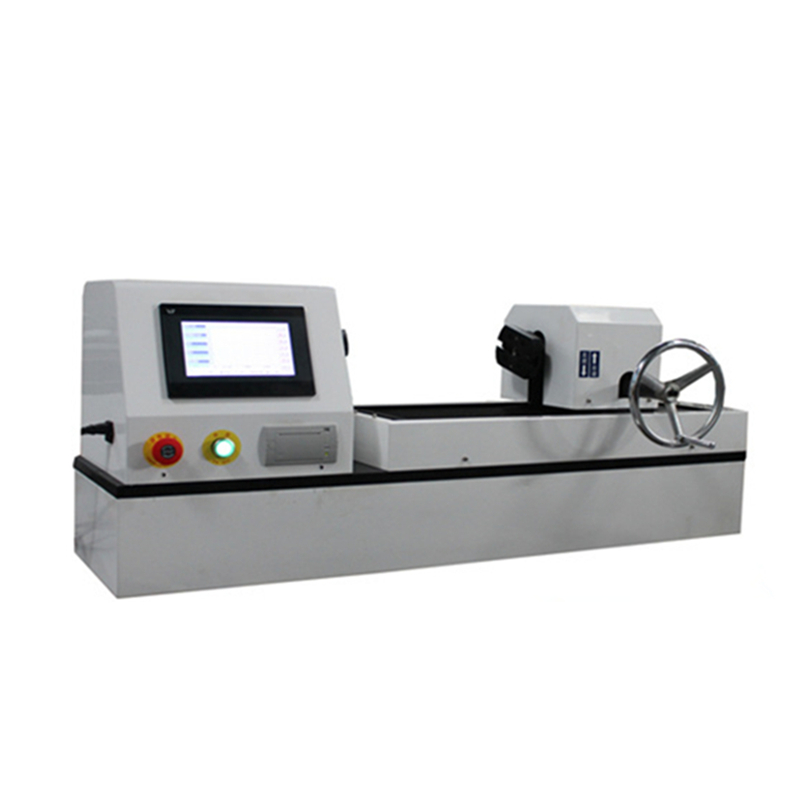

HST-TN-H Manual Horizontal Torsion Spring Tester(50/100NM)
Fuction
This series digital torsion spring tester is a kind of intelligent multi-functional measuring instrument used for testing and inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Specification
Model
TNS-10P
TNS-20P
TNS-50P
TNS-100P
Max torque（N/m）
10
20
50
100
Test class
1 class
Torque test range(F·S)
1%～100%
Relative error of torque indication
±1%
Angle value accuracy (%)
≤±1
Angledisplay resolution(°)
0.1
Max torque angle
99999°
Sample size
0.1-200mm
Effective distance between chucks (mm)
200
Test rotating direction
Two ways
Power
220V±10%，50Hz
