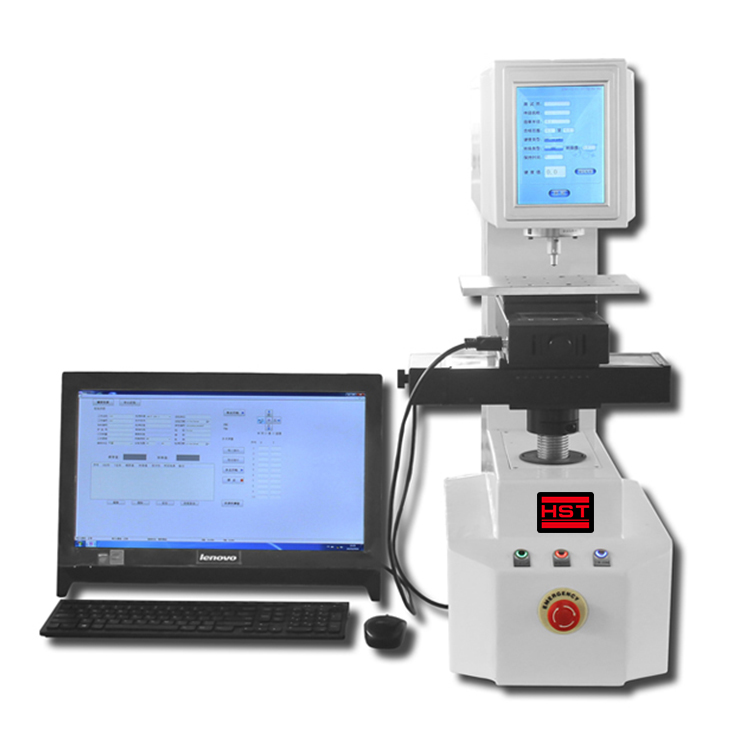

HRS-150D-ZXY Fully Automatic Rockwell Hardness Tester
Fully Automatic Rockwell Hardness Tester,the main hardness tester can be divided from automatic system and it can be used for testing independently.
Standards:
ISO,ASTM
Request A Quote Files Download
HRS-150D-ZXY Fully Automatic Rockwell Hardness Tester
Features
1. The main Hardness Tester can be divided from automatic system and it can be used for testing independently.2. Just like build with blocks, they can be upgraded according to requirement.
3. Specimen will be raised up automatically (without height limited)
4. Automatically load the initial test force
5. Automatically load the main test force
6. Automatically measure the hardness values
7. May multi-point, multi-parts test hardness value, series test, for example, automatically measure the end quenched curves for 6 pcs end quenched specimens
8. Automatically hardness exchange according to Chinese standard/ASTM
9. Automatically alarm the unqualified hardness value
10. The Hardness Test data will be stored forever for inquiry database
11. Automatically make the inspection report subjected by the client
Main Technical Specifications
| Composition | Single hardness tester + Software + Z axis+X axis +Y axis motor+ Computer |
| Special Characteristics | Automatically accomplish the hardness testing of optional multi-points on the plane |
| Application | Apply to repeatedly test large quantity of specimens |
| Initial Test Force | 10kgf(98.07N) |
| Test Force | 60kgf(588N), 100kgf(980N), 150kgf(1471N) |
| Dwelling Time | 0~60s |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK |
| Carry Out Standard | Chinese Standard GB/T230.1, GB/T230.2, JJG112 Inspection Rule, ASTM Standard |
| Max Height of Specimen | 175mm, Added Height: 400mm |
| Distance between Indenter to outer wall | 160mm |
| Specimen Rising Speed | 3mm/s |
| Hardness Test Range | HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRF: 60-100, HRG：30-94, HRH：80-100, HRK：40-100 |
| Specimen Rising Up | Automatically |
| Apply Initial Test Force | Automatically |
| Apply Main Test Force | Automatically |
| Specimen moving in X or Y Axis | Automatically Move |
| Moving Precision in X or Y Axis | 0.003mm |
| Travels in X or Y Axis Direction | 100mm |
| Hardness Value Display | Automatically |
| Hardness Value Exchange | Automatically |
| Hardness Values Output | Built-in Printer, RS232 Interface, Normal Printer |
| Hardness Statistic and Analysis | With |
| Hardness Test Database Inquiry | With |
| User’s Stipulated Inspection Report | Automatically Form |
| Exchange Scales | Superficial Rockwell, Brinell, Vickers |
| Readout Hardness Value | Large Digital Display Screen |
| Overall Dimension (mm) | 520x240x720mm |
| Power Supply | AC220V |
| Net Weight of Main Tester | About 65kg |
